Advanced Display Features

• Four Full Digits: The display on the 330R2 can display numbers up to 9999 while most digital panel meters can only display up to 1999.  This means the 330R2 can display type K thermocouples up to 2300ºF and 4-20mA signals up to 9,999.

• Front Panel LEDs: The 330R2 is supplied with two relays that can be utilized for alarming or control applications. Each alarm has its own LED on the front panel to indicate alarm status.
• Sunlight Readable Display: The front LED display has eight levels of adjustible intensity to compensate for various lighting conditions.

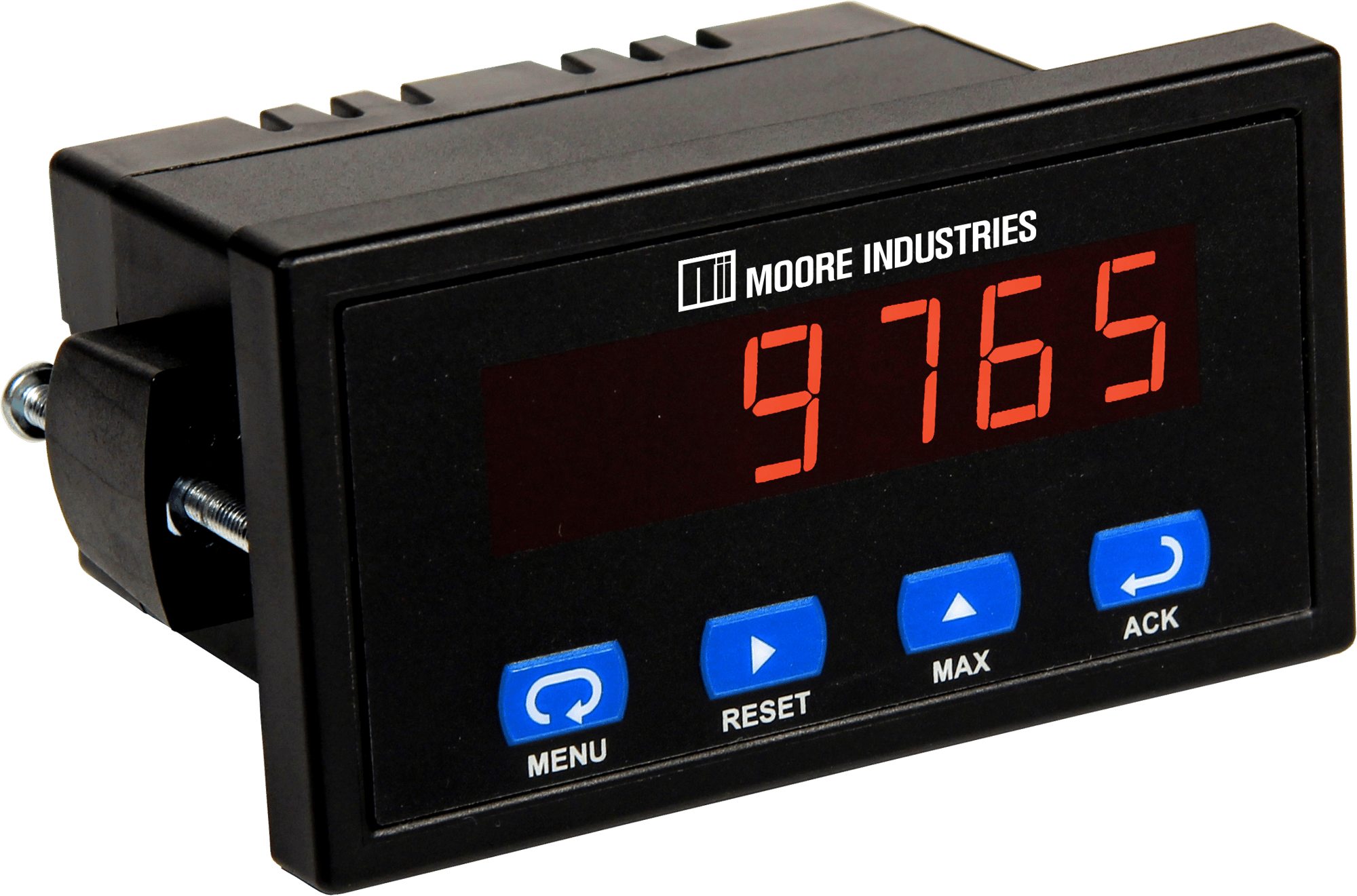

The 330R2 Digital Process and Temperature Meter is a highly versatile and field-programmable 1/8 DIN panel display suited for a wide variety of applications. With universal input and dual process relays the 330R2 is well suited for alarming and control applications in most all industrial settings. The compact design, NEMA 4X/IP65 front panel, and easy mounting make this panel meter a perfect choice for control room or remote cabinet installations. Programming is simple and quick via front panel pushbuttons or free PC configuration software. With the included dual process relays and optional isolated 4-20mA output, the 330R2 is a multifunctional and diverse panel meter designed for the most challenging environments.

• Adjustable Display Intensity - Especially Effective for Outdoor Installations
• Programmable Inputs: 0-20mA, 4-20mA, ±20mA, 0-5V, 1-5V, 0-10V, ±10V, TC & RTD
• Auxiliary Isolated 24VDC @ 200mA Transmitter Power Supply*
• Optional Isolated Analog Output for Retransmission of Input
• Free PC-Based Programming & Monitoring Software
• UL & Canada-UL Listed. UL 508 Industrial Control Equipment
• High & Low Alarms with Multiple Reset Actions
• All Models Include Two Form C (SPDT) Relays
• Duplex Pump Controller with Alternation Capability

*Available on some models

Quick and Easy Programming

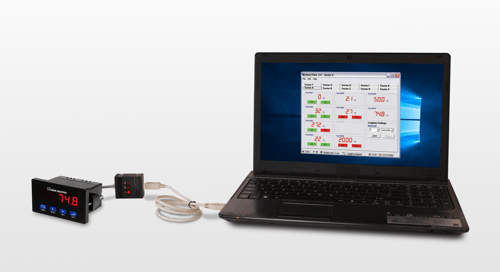

• Free PC-Based MeterView Software: Allows programming of all 330R2 settings from a PC. After setting up the parameters, you can save the configuration file for reporting or programming additional 330R2 meters.
• Programming with Front Panel Buttons: You can conveniently program the configuration parameters of the 330R2 onsite or in the field using the four front panel buttons.
